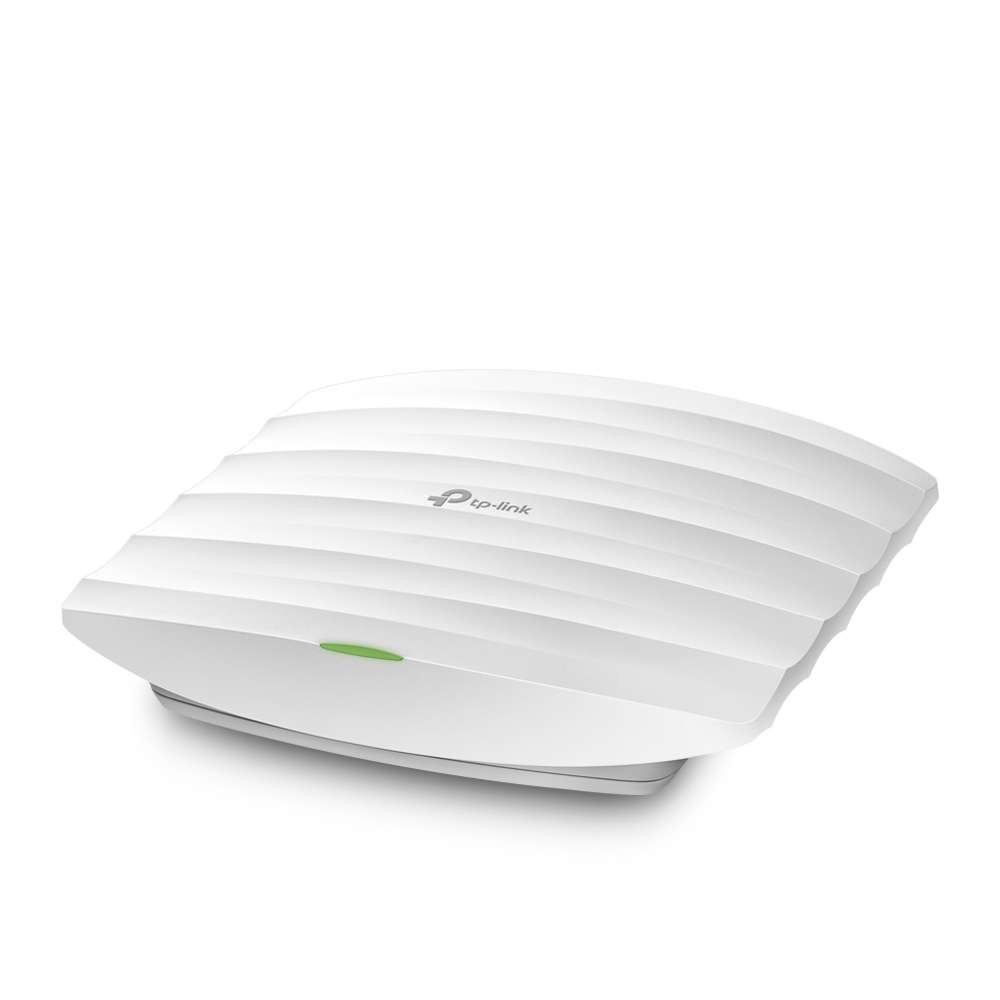

TP-Link AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point – TL-EAP245

TP-Link AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point – TL-EAP245HARDWARE FEATURESInterface2 × Gigabit RJ45 Ports (One port supports IEEE802.3at PoE, another port supports Passive PoE Out)△Physical Security LockYesButtonResetPower Supply• 802.3at PoE • 48V Passive PoE ( 4,5pins; -7,8pins. PoE Adapter included.)Power ConsumptionEU: 15.2 W US: 16.3 WDimensions ( W x D x H )8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)Antenna TypeInternal Omni • 2.4 GHz: 3× 3.5 dBi • 5 GHz: 3× 4 dBiMountingCeiling/Wall Mounting (Kits included)WIRELESS FEATURESCoverage140㎡(1500 ft²)§Concurrent Clients220 ***Wireless StandardsIEEE 802.11ac/n/g/b/aFrequency2.4GHz and 5GHzSignal Rate• 5 GHz:Up to 1300 Mbps • 2.4 GHz:Up to 450 MbpsWireless Functions• Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming(802.11k/v/r)* • Omada Mesh* • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/ClientWireless Security• Captive Portal Authentication* • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise, • WPA-PSK / WPA2-PSKTransmission Power• CE： ≤20 dBm (EIRP @2 GHz) ≤23 dBm (EIRP @5 GHz Band1&2) ≤28 dBm (EIRP @5 GHz Band3) • FCC: ≤24 dBm (2.4 GHz) ≤24 dBm (5 GHz)MANAGEMENTOmada AppYesCentralized Management• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software ControllerCloud AccessYes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)Email AlertsYesLED ON/OFF ControlYesManagement MAC Access ControlYesSNMPv1, v2cSystem Logging Local/Remote SyslogLocal/Remote SyslogSSHYesWeb-based ManagementHTTP/HTTPSL3 ManagementYesMulti-site ManagementYesManagement VLANYesZero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.OTHERSCertificationCE, FCC, RoHSPackage Contents• 5 EAP245 Access Points • 5 Mounting Kits • 1 Installation GuideSystem RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, LinuxEnvironment• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensingQuick LinksTPlink AC1750 Wi-Fi Range Extender RE450AC1750 Wireless Dual Band Gigabit Router Archer C7AC1750 Wi-Fi Range Extender RE450TP-Link AC1750 Wi-Fi Range Extender – TL-RE450TP-Link AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
