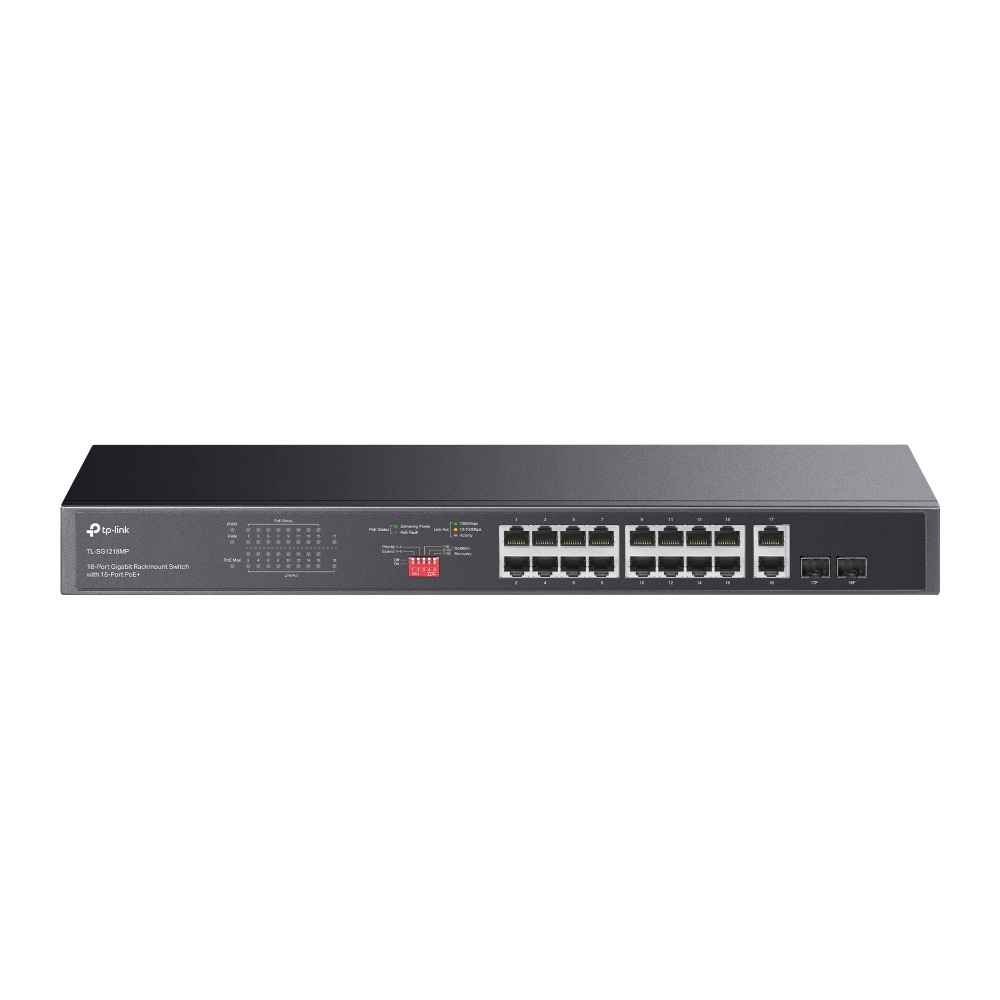

TP-Link SG1218MP 18-Port Gigabit Rackmount Switch with 16-Port PoE

HARDWARE FEATURESStandards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1pInterface• 16× PoE gigabit RJ45 ports • 2× gigabit non-PoE RJ45 ports • 2× combo gigabit SFP slotsNetwork Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMFFan Quantity2Physical Security LockYesPower Supply100–240 VAC, 50/60 HzPoE Ports(RJ45)• Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 250 WDimensions ( W x D x H )17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)MountingRack MountableMax Power Consumption• 19 W (220/50 Hz. no PD connected) • 293.34 W (220/50 Hz. with 250 W PD connected)Max Heat Dissipation• 64.79 BTU/h (no PD connected) • 1000.29 BTU/h (with 250 W PD connected)PERFORMANCESwitching Capacity36 GbpsPacket Forwarding Rate26.78 MbpsMAC Address Table8KPacket Buffer Memory4.1 MbitAdvanced Functions• Compatible With IEEE 802.3af/at Compliant PDs • 802.1p/DHCP QoS • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode • Extend Mode (Ports 1–4, Up to 250 m PoE power supply and data transmission) • Priority Mode (Ports 1–4) • Isolation Mode (Ports 1-8/9-16) • PoE Auto Recovery (Ports 1-16)Jumbo Frame10 KBOTHERSCertificationCE, FCC, RoHSPackage Contents• TL-SG1218MP • Installation Guide • Power Cord • Rackmount Kit • Rubber FeetEnvironment• Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing หมวดหมู่: Switch TP-LINK
