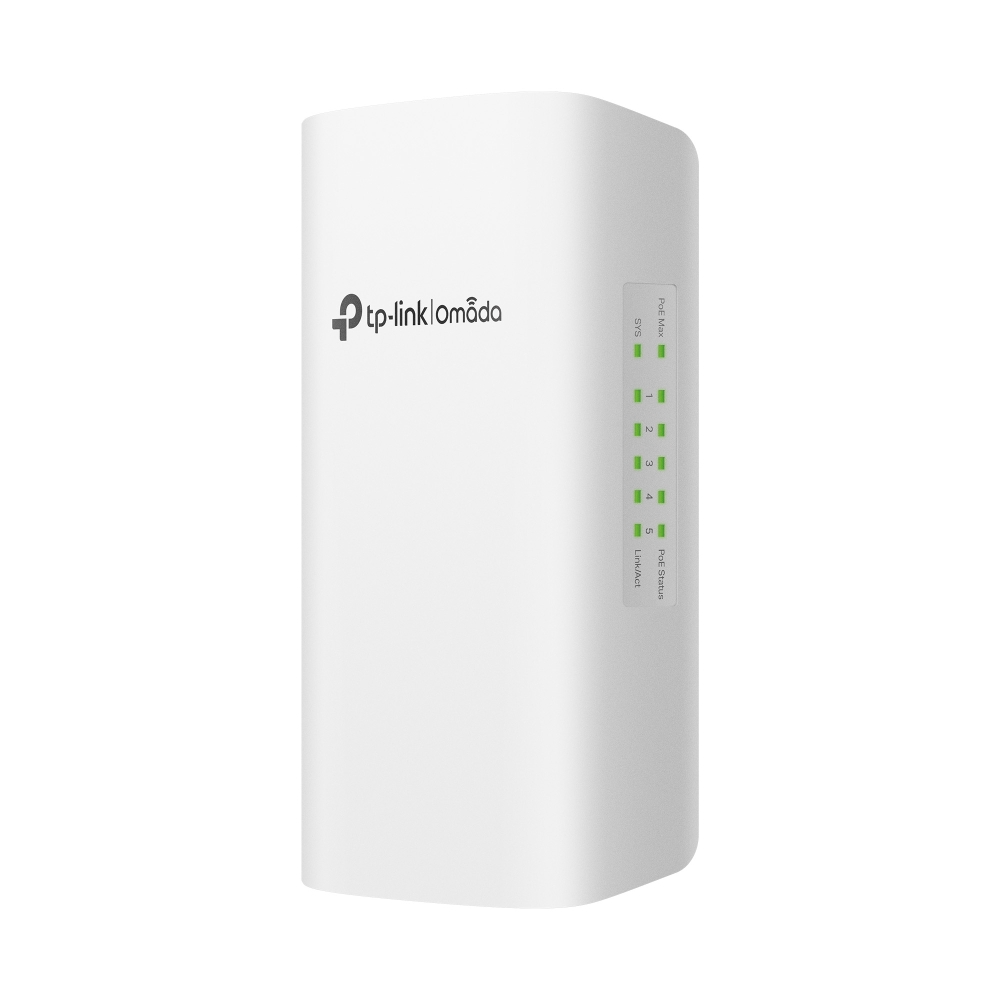

TP-LINK SG2005P-PD Omada 5-Port Gigabit Smart Switch PoE

Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1xInterface• 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt) • 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE)Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)Fan QuantityFanlessPower SupplyObtain Power from 802.3af/at/bt PoE SourcePoE Ports (RJ45)• PoE In Port: Port 5, Compliance with 802.3af/at/bt • PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE • PoE Power Budget: -64 W when powered by 802.3bt Type 4 (90 W) -44 W when powered by 802.3bt Type 3 (60 W) -19 W when powered by 802.3at -6 W when powered by 802.3afDimensions ( W x D x H )3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm)Max. Power Consumption71.5 W (when powered by 802.3bt Type 4 (90 W))Max Heat Dissipation243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W)) รหัสสินค้า: SG2005P-PD หมวดหมู่: Switch TP-LINK
