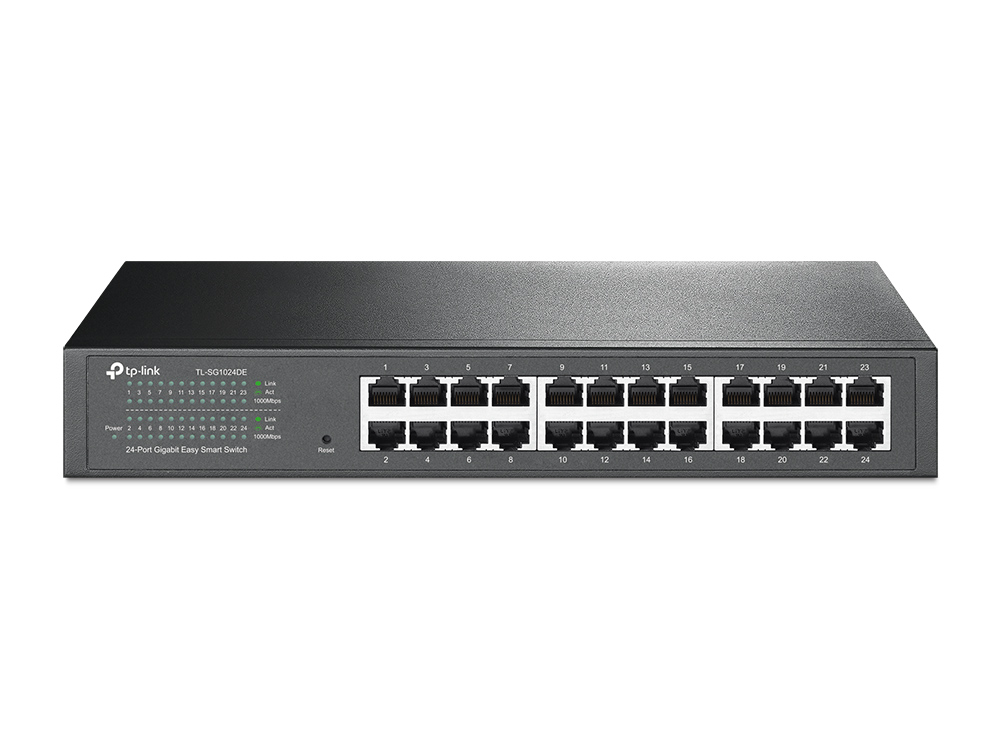

TP-Link SG1024DE 24-Port Gigabit Easy Smart Switch

HARDWARE FEATURESStandards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1pInterface24 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIXNetwork Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)Fan QuantityFanlessPhysical Security LockNoPower Supply100-240VAC, 50/60HzPower ConsumptionMaximum: 14.86W (220V/50Hz)Dimensions ( W x D x H )11.6*7.1*1.7 in. (294*180*44 mm)MountingRack MountableMax Power Consumption15.56W (220V/50Hz)Max Heat Dissipation50.06 BTU/hPERFORMANCESwitching Capacity48GbpsPacket Forwarding Rate35.7MppsMAC Address Table8KPacket Buffer Memory512KBJumbo Frame9KBSOFTWARE FEATURESQuality of ServiceSupport Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm ControlL2 FeaturesIGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop PreventionVLANSupports up to 128 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLANTransmission MethodStore-And-ForwardOTHERSCertificationFCC, CE, RoHSPackage ContentsTL-SG1024DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber FeetSystem RequirementsMicrosoft® Windows® for running UtilityEnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing หมวดหมู่: Switch TP-LINK
