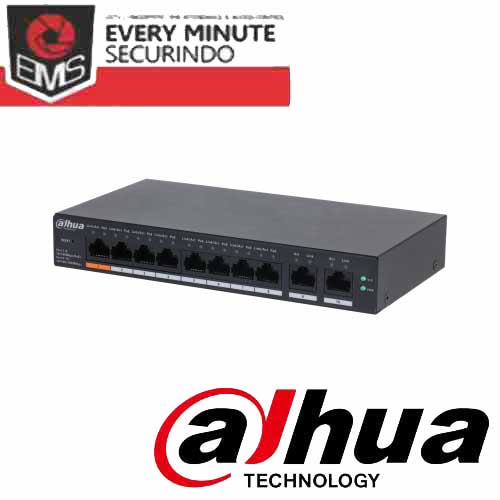

DH CS4010 8ET 60

Spesifikasi DH CS4010 8ET 60 Basic Layer   Layer 2 Switching Capacity   4.8 Gbps Packet Forwarding Rate   3.57 Mpps Description of Function Slots   Port 1-8: 8 × RJ-45 10/100 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink) PoE Power   Port 1 ≤ 60 W, Port 2-8 ≤ 30 W, total ≤ 60 W Operating Temperature   –10 °C to 55 °C ( 14 °F to 131 °F) Operating Humidity   5% –95% (RH), non-condensing Power Consumption   Idling: ≤3 W; Full load: 65 W Power Supply   External power supply: 53 VDC, 1.226 A Statics Protection   Air discharge: 8 kV; Contact discharge: 6 kV Lightning Protection   Common mode: 4 kV; Differential mode: 2 kV Net Weight   0.28 kg (0.64 lb) Product Dimensions   130 mm × 90 mm × 26 mm (5.11″ × 3.54″ × 1.02″) (L × W × H) Hardware PoE   Yes Reset Button   1 Storage Temperature   –40 °C to 70 °C (–40 °F to 158 °F) Storage Humidity   5%–95% (RH), non-condensing Performance MTBF   232.62 years Packet Buffer Size   4 Mbit Jumbo Frame   9216 Byte MAC Table Size   8K VLAN Number   32 Communication Standard   IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab Feature PoE Protocol   IEEE802.3af; IEEE802.3at; Hi-PoE PoE Power Consumption Management   Yes PoE Pin Assignment   1,2,4,5（V ）,3,6,7,8（V-） Long Distance PoE Transmission   Yes VLAN Function   Port-based VLAN IEEE 802.3x Flow Control   Yes DHCP Function   DHCP Client Equipment Management   Web management; App management General Gross Weight   0.80 kg (1.76 lb) Packaging Dimensions   265 mm × 238 mm × 76 mm (10.43″ × 9.37″ × 2.99″) (L × W × H) Casing Material   Sheet metal Installation   Desktop mount; wall mount Certifications   CE Packing List   Quick Start Guide × 1; Legal and Regulatory Information × 1;Power adapter × 1; Power cord × 1
