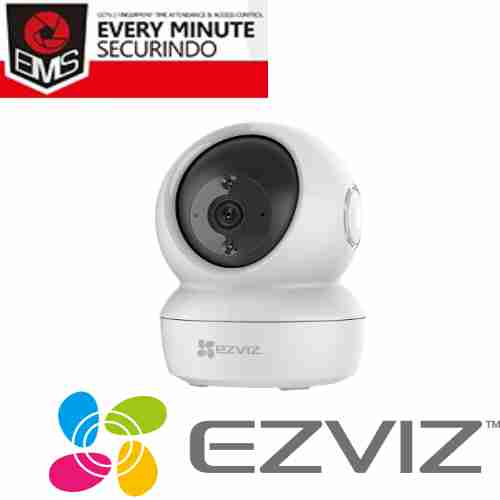

EZVIZ C6N -- Smart Wi-Fi Pan & Tilt Camera

Model Parameters Model CS-C6N-A0-1C2WFR Camera Image Sensor 1/4″ Progressive Scan CMOS Shutter Speed Self-adaptive shutter Lens 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical Lens Mount M12 Day & Night IR-cut filter with auto-switching DNR 3D DNR WDR Digital WDR Compression Video Compression H.264 Video Bit Rate Full HD; HD; Standard. Adaptive bit rate. Image Max. Resolution 1920 × 1080 Frame Rate Max. 15fps; Self-adaptive during network transmission Network Smart Alarm Motion detection Wi-Fi Pairing AP Pairing Protocol EZVIZ Cloud Proprietary Protocol Interface Protocol EZVIZ Cloud Proprietary Protocol Interface Storage MicroSD card slot (Max. 256 GB) Power Micro USB Wired Network RJ45 X 1 (10M/100M self-adaptive Ethernet port) Wi-Fi Standard IEEE802.11 b/g/n Frequency Range 2.4 GHz ~ 2.4835 GHz Channel Bandwidth Supports 20MHz Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Transmission Rate 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps General Power Supply DC 5V/1A Power Consumption 5W max IR Range MAX. 10m (32.81 fts) Dimensions 88 mm x 88.2 mm x 119 mm (3.46” x 3.47” x 4.69”) Packaging Dimensions 103 mm x 103 mm x 168 mm (4.06” x 4.06” x 6.61”) Bare Weight 218g (0.48lb) Packaging Contents Packaging Contents C6N camera; Base; Screw Kit; Power Cable 3m (9.8 ft.); Drill Template; Power Adapter; Quick Start Guide Operating Environment Temperature -10° C to 45° C (14° F to 113° F) Humidity 95% or less (non-condensing) Certifications Certifications FCC / UL / CE / WEEE / REACH / RoHS
