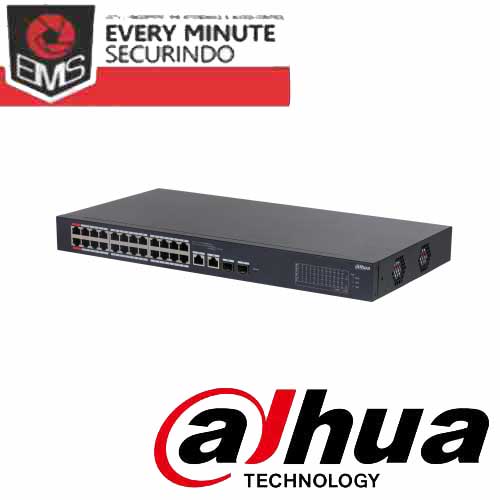

DH CS4226 24ET 375

Kategori Spesifikasi DH CS4226 24ET 375 Included Power Adapter Yes PoE Yes Ethernet Port 24 Ethernet Port Speed 10/100 Mbps Optical Port Speed 1000 Mbps Ethernet Port Uplink Speed 10/100/1000 Mbps Optical Port Uplink Speed 1 Gbps Slots Port 1–24: 24 × RJ-45 10/100 Mbps (PoE) Port 25–26: 2 × RJ-45 10/100/1000 Mbps (combo) Port 25–26: 2 × SFP 1000 Mbps (combo) Reset Button 1 Power Supply Built-in power supply: 100–240 VDC, 47–63 Hz, max 7 A Operating Temperature –10 °C to 55 °C ( 14 °F to 131 °F) Operating Humidity 5%–95% RH (non-condensing) Storage Temperature –40 °C to 70 °C (–40 °F to 158 °F) Storage Humidity 5%–95% RH (non-condensing) Power Consumption Idling: ≤8.5 W  |  Full Load: 400 W Layer Layer 2 Management Type Yes Smart Managed Switch Yes MTBF 64.20 years Switching Capacity 8.8 Gbps Packet Forwarding Rate 6.55 Mpps Packet Buffer Size 4 Mbit Jumbo Frame 15K Byte MAC Table Size 8K VLAN Number 32 Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z PoE Protocol IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt PoE Power Port 1–2 ≤ 90 W; Port 3–24 ≤ 30 W; Total ≤ 375 W PoE Power Consumption Management Yes PoE Pin Assignment 1,2,4,5 (V ); 3,6,7,8 (V–) Long Distance PoE Transmission Yes VLAN Function Port-based VLAN IEEE 802.3x Flow Control Yes DHCP Function DHCP Client Equipment Management Web Management; App Management Static Protection Air Discharge: 8 kV  |  Contact Discharge: 6 kV Lighting Protection Common Mode: 4 kV  |  Differential Mode: 2 kV Net Weight 2.62 kg (5.76 lb) Gross Weight 3.22 kg (7.08 lb) Product Dimensions (L×W×H) 440 × 220 × 44 mm (17.32″ × 8.66″ × 1.73″) Packaging Dimensions (L×W×H) 540 × 342 × 90 mm (21.26″ × 13.46″ × 3.54″) Casing Material Sheet Metal Installation Desktop Mount; Rack Mount
