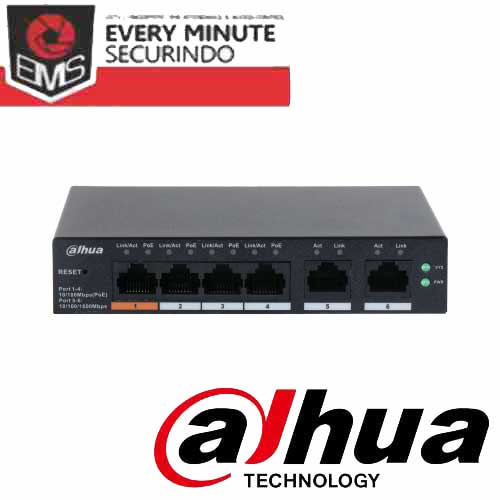

DH CS4006 4ET 60

Kategori Spesifikasi DH CS4006 4ET 60 Included Power Adapter Yes PoE Yes Ethernet Port 4 Ethernet Port Speed 10/100 Mbps Ethernet Port Uplink Speed 10/100/1000 Mbps Slots Port 1–4: 4 × RJ-45 10/100 Mbps (PoE) Port 5–6: 2 × RJ-45 10/100/1000 Mbps (uplink) Reset Button 1 Power Supply External power supply: 53 VDC, 1.226 A Operating Temperature –10 °C to 55 °C ( 14 °F to 131 °F) Operating Humidity 5%–95% RH (non-condensing) Storage Temperature –40 °C to 70 °C (–40 °F to 158 °F) Storage Humidity 5%–95% RH (non-condensing) Power Consumption Idling: ≤3 W  |  Full load: 65 W Layer Layer 2 Management Type Smart Managed Switch (Yes) MTBF 232.62 years Switching Capacity 4.8 Gbps Packet Forwarding Rate 3.57 Mpps Packet Buffer Size 4 Mbit Jumbo Frame 9216 Bytes MAC Table Size 8K VLAN Number 32 Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE PoE Power Port 1: ≤ 60 W  |  Port 2-4: ≤ 30 W (each)  |  Total ≤ 60 W PoE Power Consumption Management Yes PoE Pin Assignment 1,2,4,5 (V ) ; 3,6,7,8 (V-) Long-Distance PoE Transmission Yes VLAN Function Port-based VLAN IEEE 802.3x Flow Control Yes DHCP Function DHCP Client Equipment Management Web Management; App Management Static Protection Air Discharge: 8 kV  |  Contact Discharge: 6 kV Lighting Protection Common Mode: 4 kV  |  Differential Mode: 2 kV Net Weight 0.28 kg (0.64 lb) Gross Weight 0.92 kg (2.02 lb) Product Dimensions (L×W×H) 130 × 90 × 26 mm (5.11″ × 3.54″ × 1.02″) Packaging Dimensions (L×W×H) 265 × 238 × 76 mm (10.43″ × 9.37″ × 2.99″) Casing Material Sheet Metal Installation Desktop Mount / Wall Mount Model DH-CS4006-4ET-60 Description 6-Port Cloud Managed Desktop Switch with 4-Port PoE
