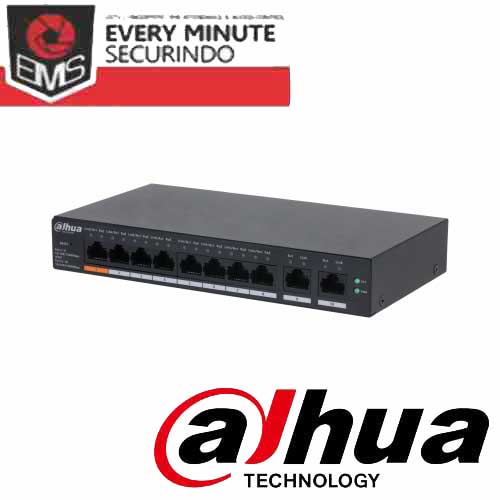

DH CS4010 8GT 60

Spesifikasi DH CS4010 8GT 60 Basic Switching Capacity 20 Gbps Packet Forwarding Rate 14.88 Mpps Description of Function Slots Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps（uplink） PoE Power Port 1 ≤60 W, Port 2-8 ≤30 W, total ≤60 W Layer Layer 2 Management Type Yes Operating Temperature –10 °C to 55 °C ( 14 °F to 131 °F) Operating Humidity 5% –95% (RH), non-condensing Power Consumption Idling: ≤3 W; Full load: 65 W Power Supply External power supply: 53 VDC, 1.226 A Statics Protection Air discharge: 8 kV; Contact discharge: 6 kV Lightning Protection Common mode: 4 kV; Differential mode: 2 kV Net Weight 0.55 kg (1.21 lb) Product Dimensions 190 mm × 106 mm × 30 mm (7.48″ × 4.17″ × 1.18″) (L × W × H) Hardware Included Power Adapter Yes PoE Yes Ethernet Port 8 Ethernet Port Speed 10/100/1000 Mbps Ethernet Port Uplink Speed 10/100/1000 Mbps Reset Button 1 Storage Temperature –40 °C to 70 °C (–40 °F to 158 °F) Storage Humidity 5%–95% (RH), non-condensing Performance Smart Managed Switch Yes MTBF 127.3 years Packet Buffer Size 4 Mbit Jumbo Frame 15K Byte MAC Table Size 8K VLAN Number 32 Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab Feature PoE Protocol IEEE802.3af; IEEE802.3at; Hi-PoE PoE Power Consumption Management Yes PoE Pin Assignment 1,2,4,5（V ）,3,6,7,8（V-） Long Distance PoE Transmission Yes Spanning Tree Protocol STP/RSTP VLAN Function Port-based VLAN IEEE 802.3x Flow Control Yes DHCP Function DHCP Client Equipment Management Web management; App management General Gross Weight 1.18 kg (2.60 lb) Packaging Dimensions 256 mm × 244 mm × 87 mm (10.07″ × 9.61″ × 3.43″) (L × W × H) Casing Material Sheet metal Installation Desktop mount; wall mount Certifications CE Packing List Quick Start Guide × 1; Legal and Regulatory Information × 1;Power adapter × 1; Power cord × 1
