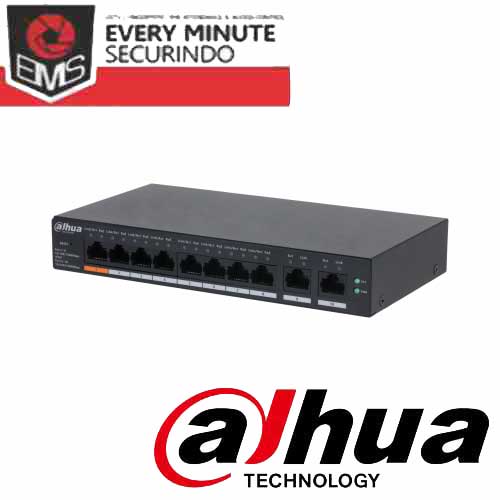

Specification DH CS4010 8GT 110 Basic Layer Layer 2 Switching Capacity 20 Gbps Packet Forwarding Rate 14.88 Mpps Description of Function Slots Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE) Port 9-10:2 × SFP 100/1000 Mbps (uplink) Operating Temperature –10 °C to 55 °C ( 14 °F to 131 °F) Operating Humidity 10%–90% (RH), non-condensing Storage Temperature –40 °C to 75 °C (–40 °F to 167 °F) Storage Humidity 5%–95% (RH), non-condensing Power Supply External Power Adapter (54 V, 2.22 A) Power Consumption Idling: 3.8 W Full load: 114 W Statics Protection Air discharge: 8 kV Contact discharge: 6 kV Lightning Protection Common mode: 6 kV Differential mode: 1 kV Net Weight 0.36 kg (0.79 lb) Gross Weight 1.14 kg (2.51 lb) Product Dimensions 184.6 mm × 103.3 mm × 27 mm (7.27″ × 4.07″ × 1.06″) (L × W × H) Packaging Dimensions 252 mm × 137 mm × 113 mm (9.92″ × 5.39″ × 4.45″) (L × W × H) Casing Material Sheet metal Installation Desktop mount; wall mount Certifications CE PoE PoE Yes PoE Power Port 3-8≤30 W, port 1-2≤90 W, total≤110 W PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt PoE Power Consumption Management PoE power consumption management; PoE power on/off; turns off PoE if overload is detected PoE Pin Assignment 1,2, (V ), 3 ,6, (V-) Long Distance PoE Transmission Yes Hardware DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode. PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off) Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off) Reset Button 1 Performance MTBF 2,079,210 hours Packet Buffer Size 4 Mbit Jumbo Frame 15360 Byte MAC Table Size 8K Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az; IEEE 802.3ad VLAN Number 32 Feature Ethernet Loop Protection STP; RSTP VLAN Function IEEE 802.1Q VLAN Link Aggregation Static Aggregation Port Feature IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control Broadcast Storm Control MAC Port Binding Loop Prevention Mirror Local Port Mirroring N:1 Mirroring Reliability LLDP DHCP Function DHCP Client Security Port Isolation Equipment Management Web Management Cloud Management Logs Fault Alarm General Packing List 1 × User Manual 1 × Legal and Regulatory Information 1 × Power Cord 1 × Power Adapter Ordering Information Type Model Description SFP module GSFP-1310T-20-SMF 1.25G 1310/1550nm,20km,LC, Single-mode GSFP-1310R-20-SMF 1.25G 1550/1310nm,20km,LC, Single-mode GSFP-1310-20-SMF 1.25G 1310nm,20km,LC, Single-mode GSFP-850-MMF 1.25G 850nm,550m,LC, Multi-mode Transmission Performance: Switch power supply voltage 54V. CAT6. Max. DC resistance < 8 Ω/100 m Cable(m) Load Capacity(W) IEEE802.3bt 90W 100 71.3 150 62 200 51 250 40 Hi-PoE 60W 100 46 150 42 200 37 250 32 IEEE802.3at 30W 100 25.5 150 25.5 200 25.5 250 24 Note: Data from this table was collected by Dahua test lab and is for reference only . The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.
